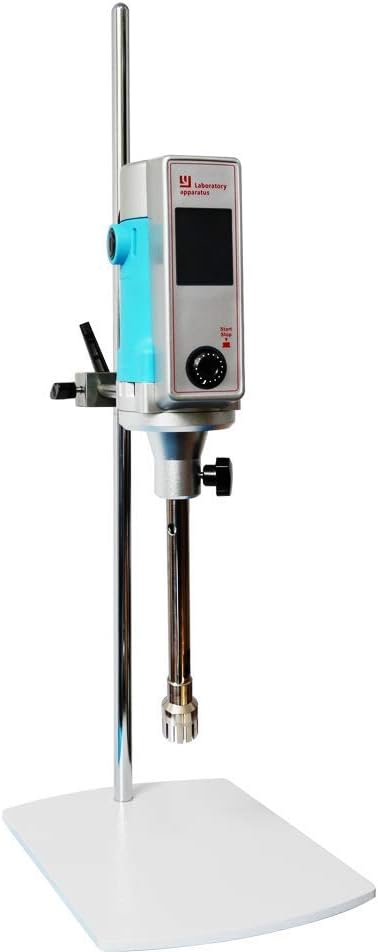

YUCHENGTECH High Shear Mixer Homogenizer Emulsifier Digital High Speed Homogenizer Lab Disperser Emulsifier Lab Homogenizer Emulsifying Machine LYD500W-T 7000mPa.s 13000ml (150-13000ml, 36G, 110V)

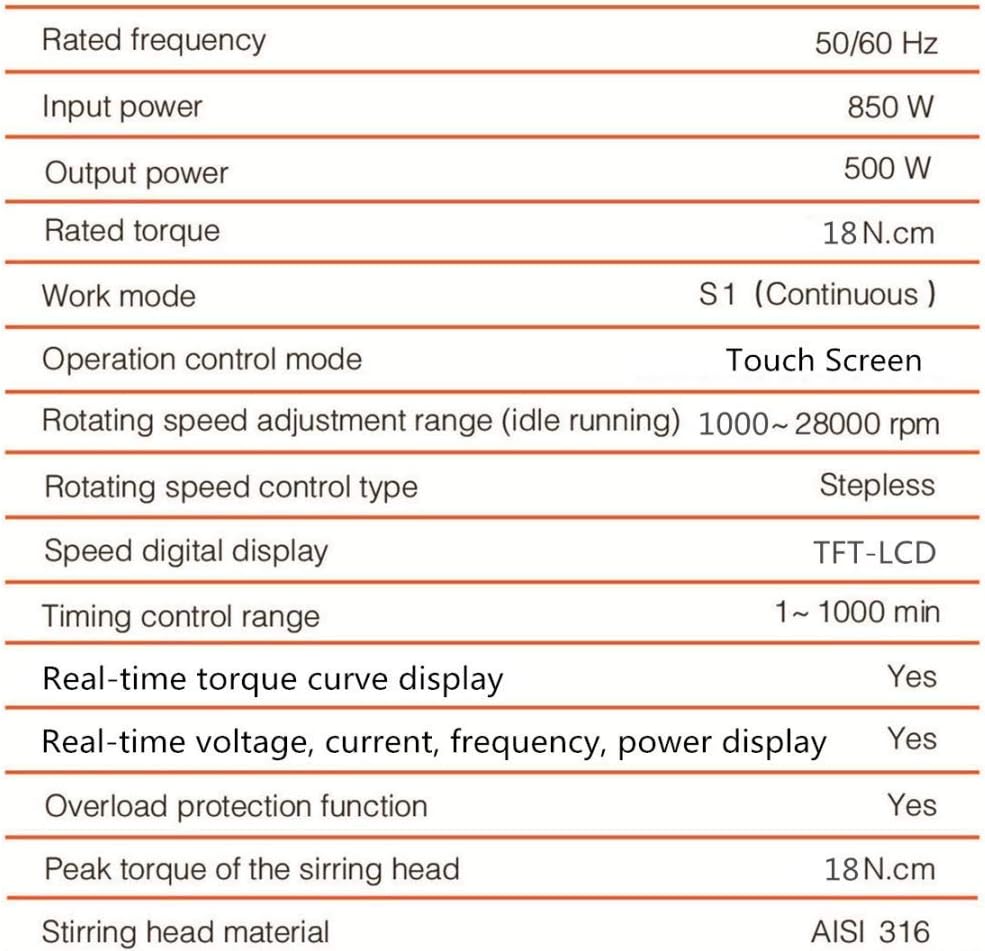

Product Introduction LYE500W-T series laboratory shear emulsifiers are driven by a compact series of micro-high-speed motors. They are suitable for mixing low to medium and high viscosity liquids in laboratories or pilot workshops, and for shearing and emulsifying granular materials in liquid media. Parameters: Voltage: 110V Rated frequency: 50/60 Hz Input power:850 W Output power: 500 W Rated torque: 18 N.cm Work mode: Si (Continuous ) Operation control mode: Touch Screen Rotating speed adjustment range (idle running) 1000- 28000 rpm Rotating speed control type: Stepless Speed digital display: TFT-LCD Timing control range: Timing control range Real-time torque curve display: Yes Real-time voltage, current, frequency, power display: Yes Overload protection function: Yes Peak torque of the sirring head: 18 N.cm Stirring head material: AISI 316 Stirring head specifications: 36G Mixing capacity ( H2O) ml: 150-13000 Max Viscosity tolerated (mPa.s): 7000 Max temperature tolerated (℃): 120 Overall length (mm): 238 Stator diameter (min): 36 Stirring head material: SS 316 Bearing material: PIFE Peak linear speed of the rotor (m/s): 26 Minimum height of the liquid immersed (mm): 65 Maximum height of the liquid immersed (mm): 175 Permissible ambient temperature: not more than 40°C Permissible relative humidity: not more than 80 % Size of the mixer (T xBxH): 215x 310x 700 mm Weight: 10 kg

• 1.【Intelligent control】: with a triple-core processor intelligent control motherboard and 2.8-inch TFT true-color touch screen, can be pre-set speed, can be paused at any time, the digital display screen can be operated by touch screen, timing control range of 1 to 1,000 minutes, you can provide real-time voltage, frequency, current, power display, as well as the torque curve graph display, to ensure that the experimental data accuracy.
• 2.【Multi-functional protection】: The stirring speed is controlled by microprocessor, which can timely and effectively compensate for the speed change caused by load change and power supply voltage fluctuation, and the speed is constant and reliable. Built-in automatic overload protection device ensures the safety of long time and high load continuous operation of the experiment; the stirring speed is adjusted steplessly to meet the correction of the stirring speed at any time during the experiment.
• 3.【Working Principle】: It is driven by brushless DC motor, and the high speed rotation makes the vacuum formed between the rotor and stator, and the materials are sucked in from the top and bottom of the rotor and stator. Powerful kinetic energy makes the rotor produce very high linear velocity so that the material in the gap between the rotor and stator to produce strong impact, crushing, shear, in a variety of different directions under the action of the force produces strong turbulence, after a certain period of time repeated cycles of depolymerization, dispersion, homogeneity, refinement, shear to produce stable emulsion.
• 4.【Applicable materials】: solid and liquid, liquid and liquid mixed to form a solution, colloid, suspension or emulsion process can be used; such as dairy products, tissue homogenization, surfactants, asphalt, emulsifiers, oilfield chemicals, cosmetics and other thousands of materials. It can be used for homogenization, emulsification, depolymerization, dispersion, suspension, cell breaking, oil-water emulsification and other functions.
• 5.【Application】: The product is suitable for the laboratory or pilot plant of low to medium viscosity liquid mixing, crushing granular materials in the liquid medium shear emulsification. Widely used in laboratory, biology, physics, molecular science, clinical new materials, new energy, food, cosmetics and other industries product material dispersion, emulsification, homogenization.
