Benchtop Mini Milling Drilling Machine 1500W Brushless Mill Drill with X-Axis Power Feed,3-Axis Grating Ruler,±90° Spindle,50-2250 RPM for Metal/Wood/Plastic Working R8 Spindle 110V
$3,269.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by solvvision.de
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$3,269.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by solvvision.de
Free 30-day returns Details
Product details
| Management number | 222395261 | Release Date | 2026/05/04 | List Price | $1,307.60 | Model Number | 222395261 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 1500W Brushless Motor Power: High-torque brushless motor delivers robust, efficient, and precise drilling and milling performance across diverse materials (metal, wood, plastic)
- Expansive Work Envelope: Generous axis travels (X: 22.4"/570mm, Y: 8.7"/220mm, Z: 15"/380mm) enable seamless handling of large or industrial-sized workpieces
- High-Precision 3-Axis DRO System: Integrated precision grating ruler (0.005mm accuracy) with zero-clearance, preset functions, auto-centering, calculator, power-fail memory, and dual metric/imperial display ensures professional-grade accuracy and efficiency
- Versatile Adjustable Spindle: ±90° tilting spindle (capable of 360° rotation) with wide speed range (50-2250 RPM) accommodates diverse operations, supporting max drilling (1.26"/32mm) and face milling (2.95"/75mm)
- Rugged All-Metal Construction: Built with an integrated spindle, brass gears, and an all-metal structure for exceptional durability, precise alignment, smooth operation, and long-term reliability

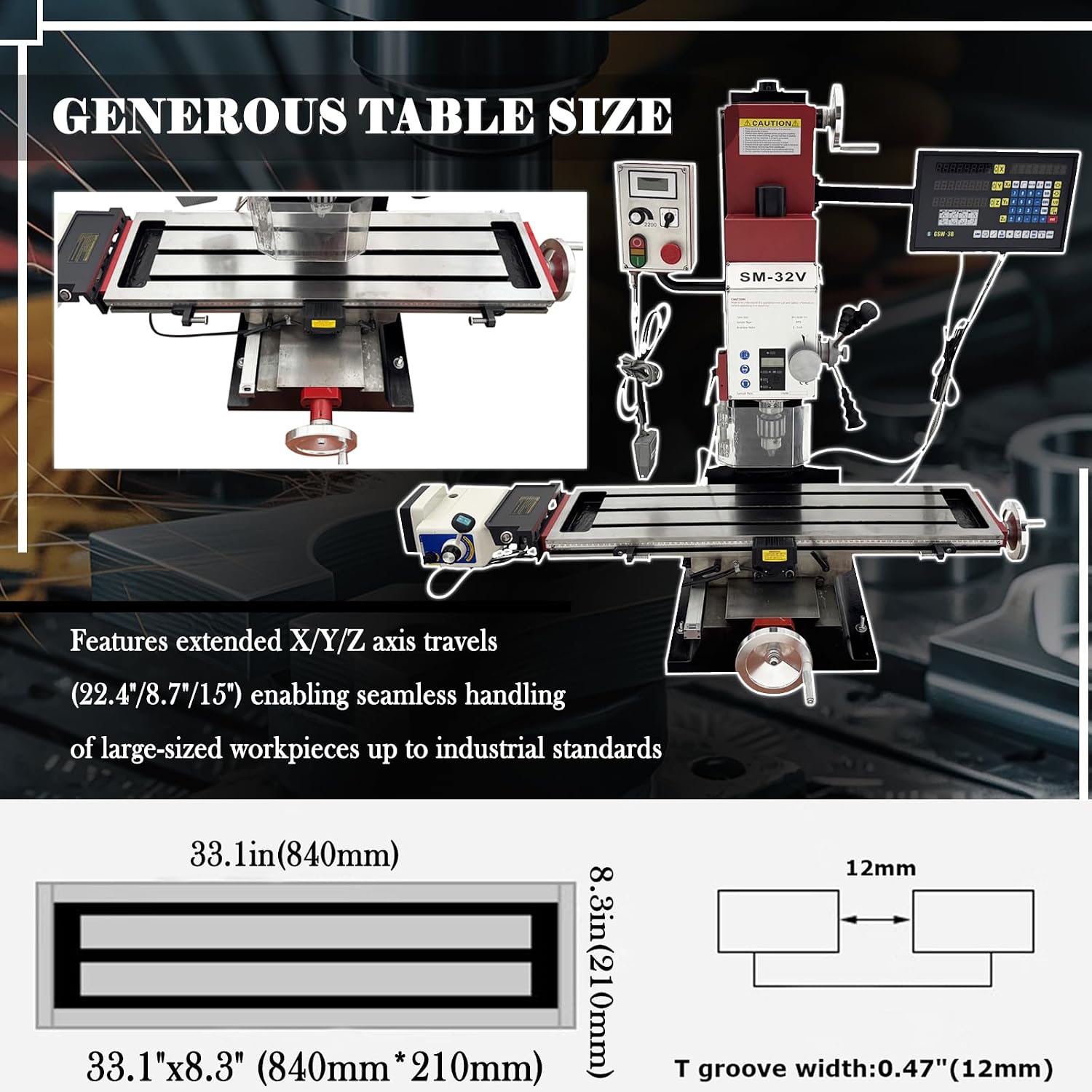

- Large, Flexible Worktable: Spacious table (33.1"x8.3"/840mmx210mm) with T-slots (0.47"/12mm) provides versatile and secure workpiece positioning and clamping options
- Operator-Centric Design: Features an intuitive LCD display with unit conversion, foot pedal control, and a user-friendly operation panel for enhanced convenience and workflow efficiency
- Multi-Functional Machining Capability: Combines powerful drilling, vertical milling, and face milling operations into one machine, ideal for precision parts, samples, models, and DIY projects on various materials
| UPC | 198462095907 |
|---|---|
| Color | Red |
| Speed | 2250 RPM |
| Voltage | 110 Volts (AC) |
| Amperage | 13.6 Amps |
| Brand Name | EQCOTWEA |
| Drill Type | Drill Press |
| Unit Count | 1.0 Count |
| Is Electric | Yes |
| Item Weight | 525 Pounds |
| Manufacturer | EQCOTWEA |
| Model Number | SM-32V |
| Power Source | AC |
| Material Type | Steel |
| Maximum Power | 1500 Watts |
| Maximum Chuck Size | 1.26 Inches |
| Additional Features | All Metal Construction, Brushless Motor, High Configuration, Variable Speed |
| Included Components | Axis X power feed *1 / Grating ruler *1/ Milling chuck set *1/ Straight screwdriver *1 / Cross screwdriver *1/ Fork wrench *4/ Hexagon wrench *5/ Drill chuck wrench *1/ Oil can *1/ English manual *1/ Fuse *1/ Relay *1 |
| Drilling Capacity Wood | 295 Millimeters |
| Drilling Capacity Metal | 32 Millimeters |
| Manufacturer Part Number | T028365 |
| Maximum Rotational Speed | 2250 RPM |
| Item Dimensions L x W x H | 50.4"L x 28"W x 39.4"H |
