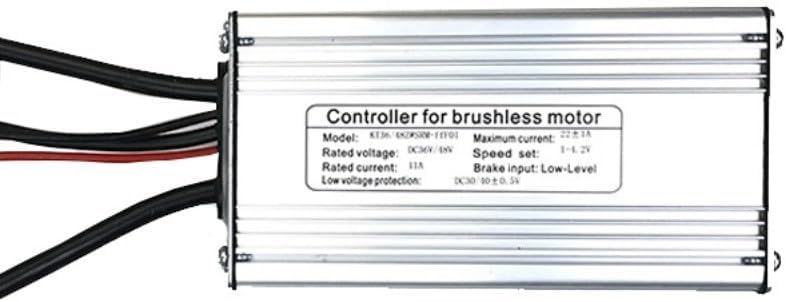

36V/48V KT-22A Square Wave Ebike Controller 22A 9MOS Brushless Motor Control Unit with SM Connectors for KT LED790-900S LCD1-LCD8 Displays and Headlight Function for 500-750W Electric Bicycles

Features:* SM Connector Design: Reliable operation in all weather conditions, ideal for outdoor use on e-bikes.* Efficient Power Management: Maximum current up to 22A, compatible with 500-750W power systems. Efficiently delivers power to the motor for optimal performance.* The controller cables connect to: motor, instrument panel, power supply, magnetic booster, throttle, and brake respectively.* Compact and Lightweight: Weighing only 360 grams and measuring 125*65*35mm, this controller is compact, portable, easy to install and carry, making it ideal for e-bike enthusiasts.* Display Function: Compatible with all for KT LED790-900S LCD1-LCD8 displays, and includes a headlight function; the headlight switch is located on the display screen.Specifications:* Product Name:for KT-22A Square Wave Controller* Material: Aluminum Alloy + Plastic* Size: Approx. 125*65*35 mm* Color: As shown in the picture* Weight: Approx. 360 grams* Power: 500-750W* Model: 9 MOS* Maximum Current: 22±1 A* Rated Voltage: DC 36 V / 48 V* Speed Setting: 1-4.2 V* Rated Current: 8 A* Brake Input: Low Level* Low Voltage Protection: DC 30 / 40 ± 0.5 V* Interface: Standard SM InterfacePackage Contents:1 x Controller

• [RELIABLE SM CONNECTOR DESIGN] Built for dependable operation in various weather conditions, suitable for biking adventures regardless of the environment.
• [EFFICIENT POWER DELIVERY] Capable of handling a maximum current of 22A, this controller is optimized for 500-750W power systems to effective motor performance.
• [LIGHTWEIGHT AND COMPACT] Weighs just 360 grams and measures 125x65x35mm, allowing for easy installation and portability for cycling enthusiasts.
• [COMPATIBLE DISPLAY FUNCTIONS] Works seamlessly with LED790, 900S, LCD1, and LCD8 displays; includes a headlight function controlled directly from the display screen.
